The MTA pumps are available in different immersible lengths to accommodate different tank designs. The MTA pumps are designed without shaft seal to increase service life.

The NBG/NKG pumps are built according toISO 5199/2858. The impeller is designed according to the super vortex principle; thus, chips and fibers up to 25 mm will not clog up the pump. The NBG/NKG pumps are available in different materials with a broad range of shaft seal combinations to accommodate almost any customer requirement.

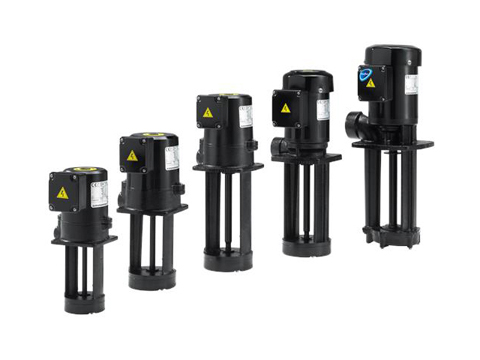

1. Immersible Pumps - MTA
Single stage pump for tank top mounting for pumping cooling lubricants and cutting oils for machine tool applications.

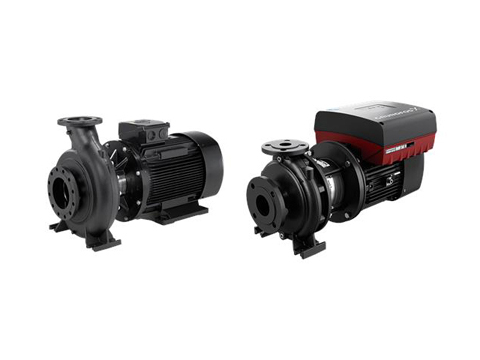

2. Endsuction close coupled single-stage pumps - NBG/NBGE
Close-coupled pumps according to ISO 2858. Flanges are PN 16 with dimensions according to AS2129 table E. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.

3. Endsuction long coupled single-stage pumps - NKG/NKGE
Standard pumps according to ISO 2858 with axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the coupling, bearing bracket and impeller without disturbing the motor, pump housing or pipework.

4. Endsuction close coupled single-stage pumps - MTB/MTBE
Close coupled end-suction pump with semi-open vortex impeller. The pumps are designed specifically for the transfer of liquids containing solid particles in industrial machine tool applications
