For all kinds of powdery or granular materials

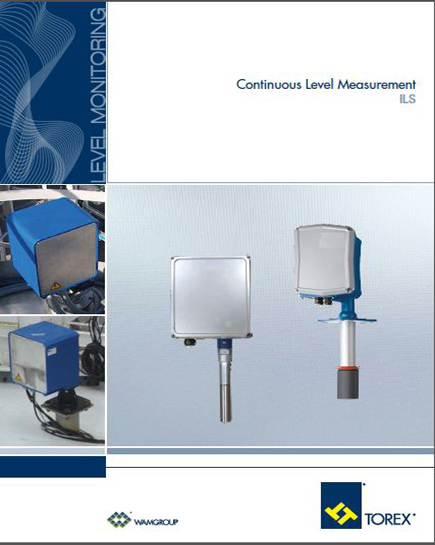

ILS is a highly efficient Continuous Level Measurement System for all kinds of powdery or granular material stored in silos or containers.

ILS is a Continuous Level Measurement System for all kinds of powdery or granular material stored in silos or containers.

Function :

• The feel weight of the ILS-system moves, microprocessor-controlled, down into the container. Upon impact on the bulk material it is pulled back to its upper stop position.
• By capturing the distance that the feel weight has covered the material level is measured.

Features :

• Output: 0/4-20 mA
• ATEX-certified, zone 20/21
• Microprocessor-controlled measurement with intelligent supervision
• Internal tape cleaner for particularly difficult materials (tape version only)
• Different feel weights, suitable for all applications
• Robust die-cast casing with protection class IP65

Benefits :

• Highly accurate easy-to-understand high-tech measurement
• Appropriate for all types of bulk solids
• Simple installation and commissioning
• No mechanical force on the silo roof (sensor only just touches the surface of the bulk material)
• Completely insensitive to: Di-electricity and conductivity of bulk material , Dust inside the silo ,Changes in moisture content of bulk material, Material that tend to stick
